LIQUID-COOLED ESS CABINET
LIPAL SERIES
261 kWh All-in-One Liquid-Cooled ESS Cabinet for C&I Energy Storage
Battery Capacity
Rated Output Power
Cycle Life
A 261 kWh liquid-cooled ESS cabinet built for C&I energy storage, combining LFP batteries, PCS, BMS, EMS, thermal management and fire protection for peak shaving, solar self-consumption and backup power applications.
UN38.3
IEC62619
IEC63056
UL9540A
G99
VDE4105
NRS097
C10/11
Built for C&I energy storage, the LiPal ESS-E261LP delivers 261 kWh capacity, 125 kW output, liquid-cooled battery protection and IP55 outdoor reliability for solar storage, peak shaving and backup power applications.
Energy Capacity
Output Power
Cycle Life
Round-Trip Efficiency
Outdoor Protection

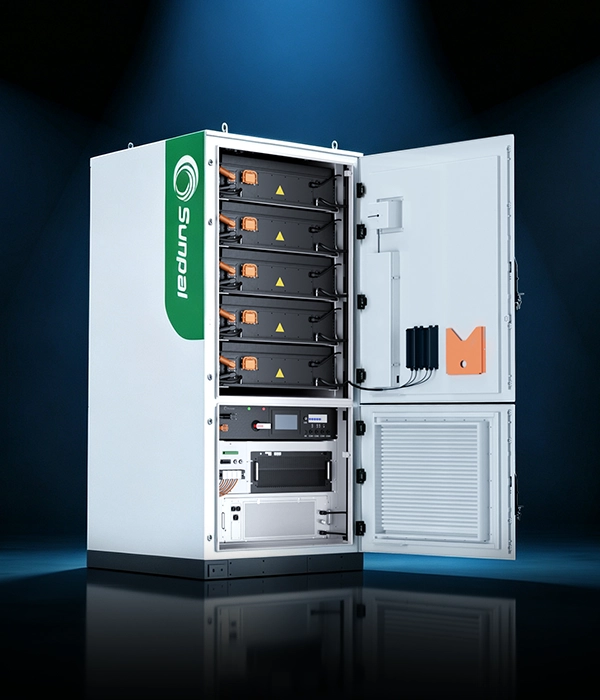

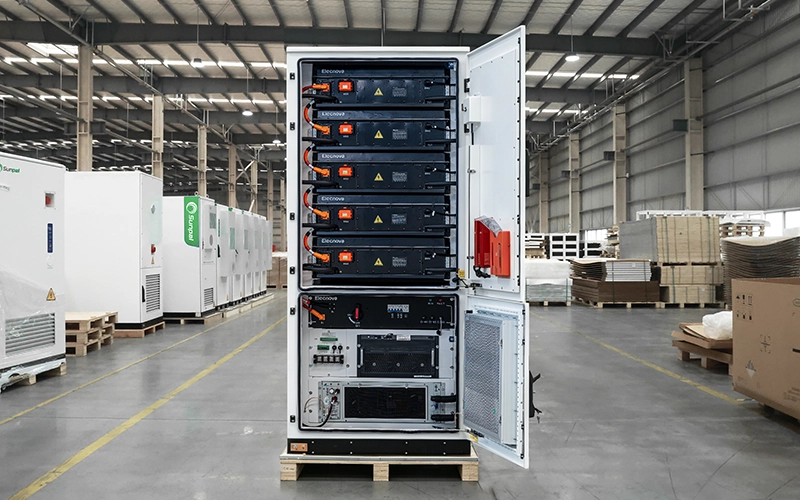

A factory-integrated 261 kWh liquid-cooled ESS cabinet combining battery packs, PCS, HV control, cooling, BMS, EMS and fire protection for C&I energy storage projects.
PCS (inverter) |
1/125kW |
High-voltage box |
1 |
Fire protection unit |
1/Smoke sensor, temperature sensor, aerosol, explosion-proof valve and water hydrant adapter |
PACK |
5/Grouping mode is 1P52S |
Liquid-cooling unit |
1/5kW (W18/L35) |
Cabinet body |
1/W1050×D1350×H2400 mm |
The LiPal ESS-E261LP is engineered as a compact 261 kWh liquid-cooled ESS cabinet for commercial and industrial energy storage projects. With integrated PCS, BMS, EMS, liquid cooling and multi-level safety protection, it helps EPCs, project developers and facility owners simplify deployment, improve thermal stability and reduce long-term operating risk.
The space-saving cabinet design reduces installation area and simplifies project layout, making it suitable for factories, commercial buildings, industrial parks and retrofit C&I energy storage sites.
Battery packs, 125 kW PCS, BMS, EMS, liquid cooling and fire protection are integrated into one factory-built cabinet, helping reduce field wiring, commissioning time and system integration complexity.
The in-pack liquid cooling design helps maintain consistent battery temperature, reduce thermal stress and support stable charge-discharge performance in high-cycle C&I energy storage applications.
High-performance LiFePO4 battery cells deliver long cycle life, strong thermal stability and reliable energy output for peak shaving, PV self-consumption, backup power and demand charge management.
The modular architecture supports parallel expansion, allowing EPCs and energy storage system buyers to scale capacity based on load profile, site conditions and future power demand.
Real-time BMS monitoring, smoke and temperature detection, aerosol fire suppression, high-voltage protection and thermal event mitigation work together to enhance cabinet-level operating safety.
[ TECHNICAL SPECIFICATIONS ]
Full Specifications for the LiPal ESS-E261LP
| Model | ECO-E261LP-2A |
| DC Side | |
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 52.2 kWh / 1P52S |
| System Configuration | 261 kWh / 1P260S |
| Rated DC Voltage | 832 V |
| DC Voltage Range | 728 ~ 936 V |
| Max. Charge/Discharge Rate | 0.5 P |
| Max. Depth of Discharge | 100% (25 ± 2 C) |
| Cycle Life | ≥ 8,000 cycles |
| AC Side | |
| Rated Output Power | 125 kW |
| Rated AC Voltage | 400 V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50Hz/60Hz |
| Power Factor | 0.99 / -1~+1 |
| THDi | ≤3% |
| DC Ratio | <0.5%Ipn |
| General | |
| Max. Round Trip Efficiency | 89% |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling+Forced air cooling |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) |
| Noise | ≤ 75 dB |
| Altitude | 3000m (Derating above 2000m) |
| Dimensions (W×D×H) | 1,050×1,350×2,400 mm |
| Weight | 2,600 kg |
| Safety/EMC | UN38.3, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4, UL9540A |
| Grid code | EN50549-1/-10, EN50549-2/-10, G99, VDE4105, NRS097, C10/11, CEI0-21, CEI0-16 |
LiPal ESS-E261LP provides a compact 261 kWh liquid-cooled ESS cabinet solution for peak shaving, PV self-consumption, backup power, microgrids and commercial energy cost optimization.

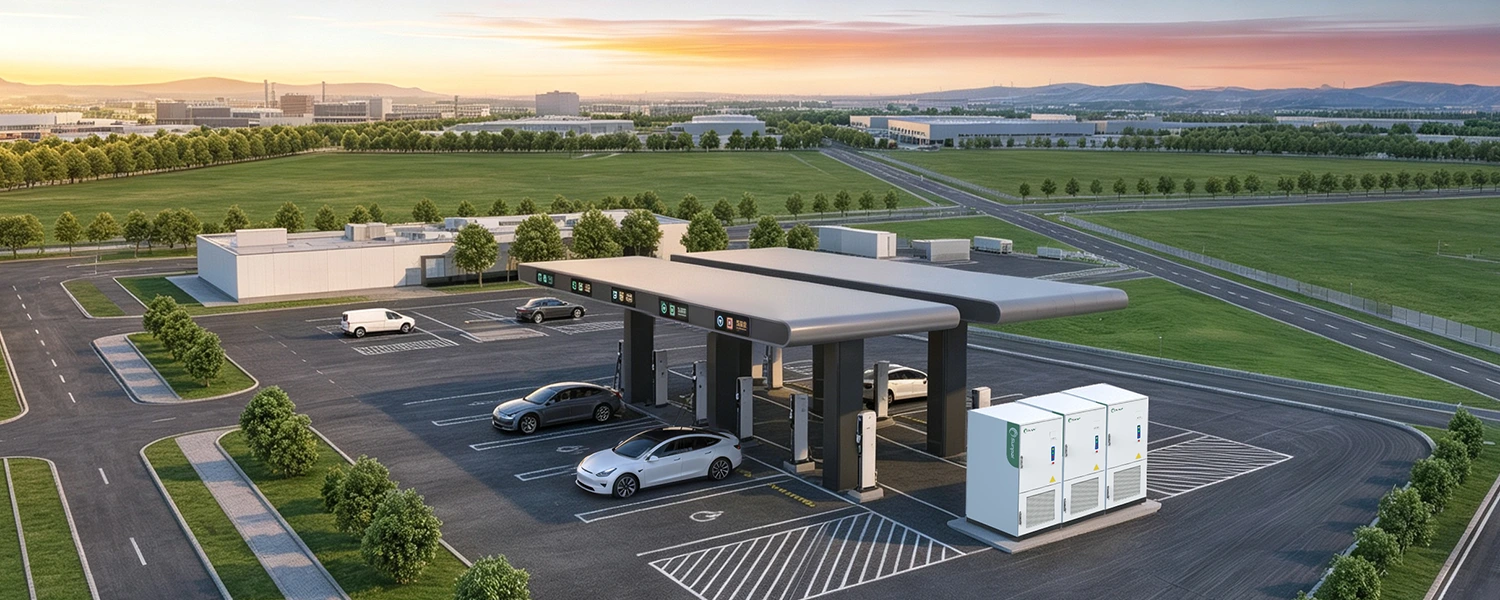

Peak Shaving

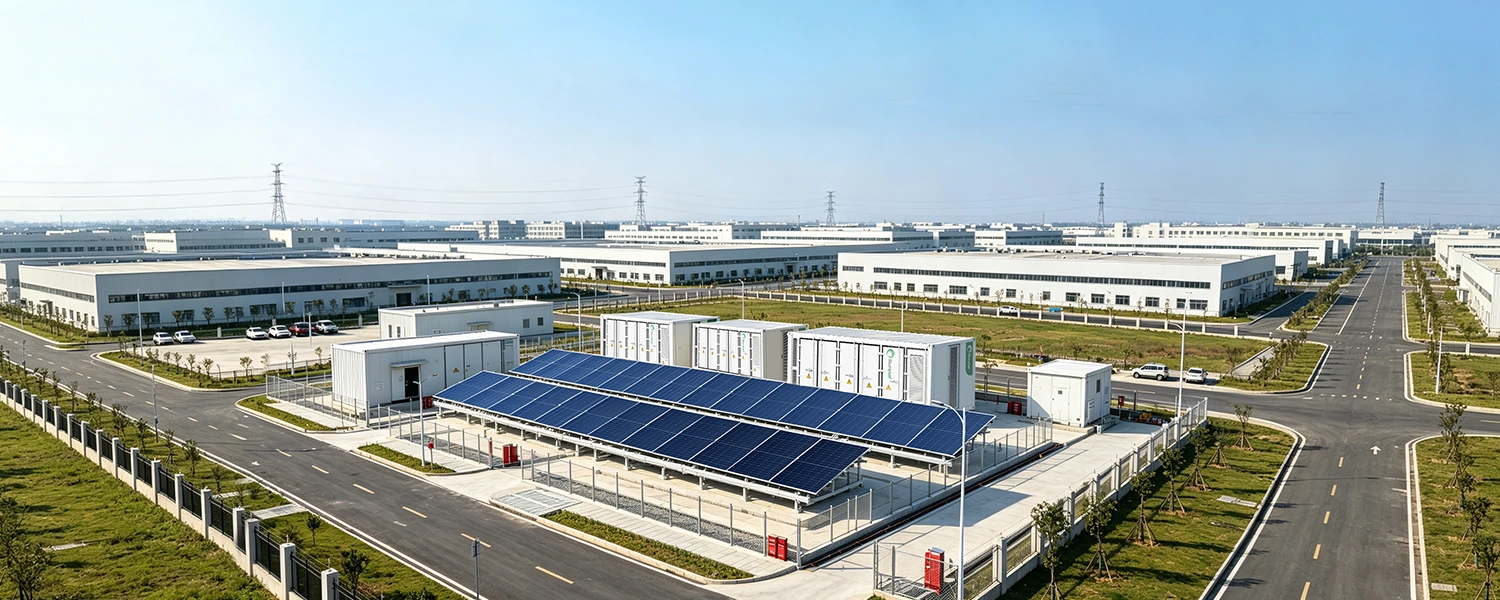

Solar-Plus-Storage

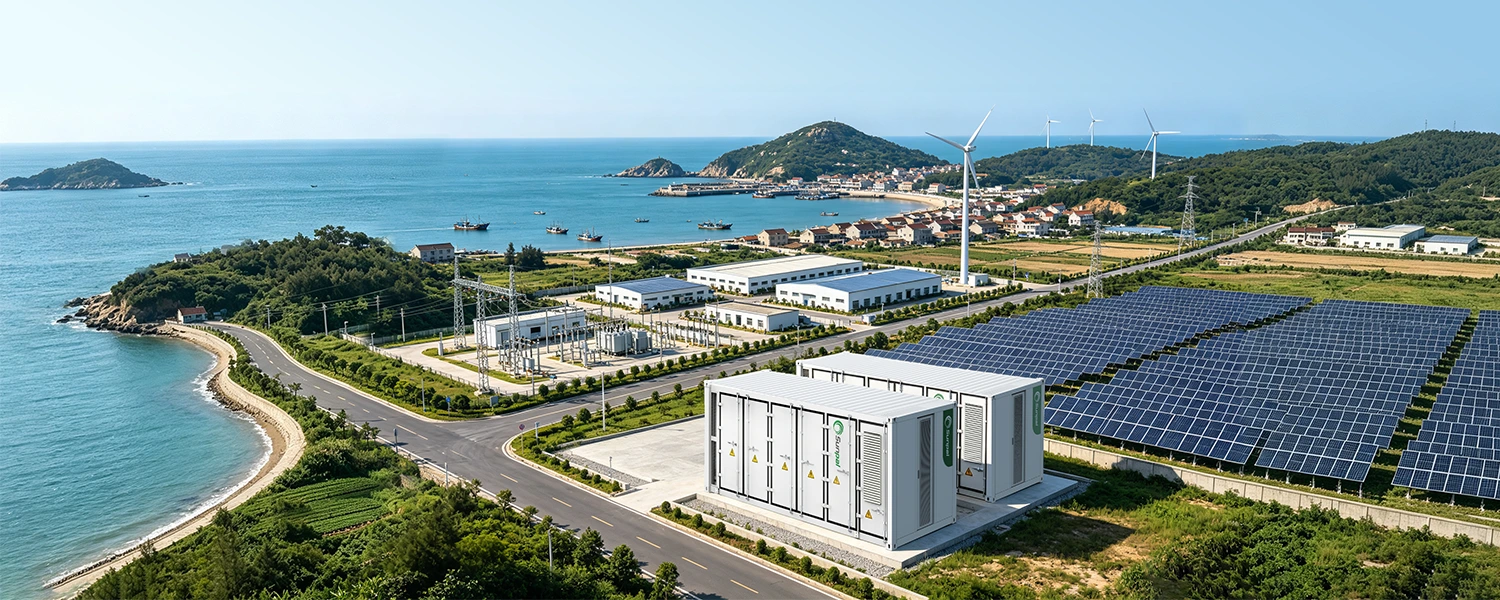

Microgrid Applications
Key questions for EPCs, project developers and C&I buyers evaluating the LiPal ESS-E261LP 261 kWh liquid-cooled ESS cabinet.
LiPal ESS-E261LP is designed for commercial and industrial energy storage applications, including factories, commercial buildings, industrial parks, solar-plus-storage projects, microgrids and backup power systems. It supports peak shaving, PV self-consumption and demand charge management.
Liquid cooling provides more precise battery temperature control than traditional air cooling. It helps reduce cell temperature differences, improve battery consistency and support stable long-term operation in high-cycle C&I energy storage projects.
Yes. The 261 kWh ESS cabinet can be integrated with solar PV systems to store surplus daytime energy and discharge it during peak tariff periods, improving solar self-consumption and reducing grid electricity costs.
No. The system integrates LFP battery packs, 125 kW PCS, BMS, EMS, liquid cooling, HVAC and fire protection inside one cabinet, helping reduce field wiring, commissioning time and installation complexity for EPC projects.
Yes. The modular architecture supports parallel deployment, allowing capacity expansion based on load growth, backup power demand or future C&I energy storage project requirements.
The system combines LFP battery chemistry, real-time BMS monitoring, smoke and temperature detection, aerosol fire suppression, high-voltage protection and thermal event mitigation to improve cabinet-level operating safety.
Yes. The cabinet is designed for outdoor C&I deployment with IP55 protection, integrated thermal management and a compact enclosure. Final installation should be checked against local climate, grid requirements and site conditions.
To receive pricing, datasheet details or a custom quote, share your project capacity, power demand, PV integration plan, backup duration and site conditions. SUNPAL ESS can support EPCs, distributors and commercial buyers with configuration guidance and technical consultation.
Tell us about your C&I energy storage project and receive LiPal ESS-E261LP pricing, lead time, datasheet details and technical configuration support within 24 hours.
Our engineering team responds within 3 working days with acustomized technical proposal including system design, BOM, and ROI analysis.
+
