LIQUID-COOLED ESS CONTAINER
CUBEPAL SERIES

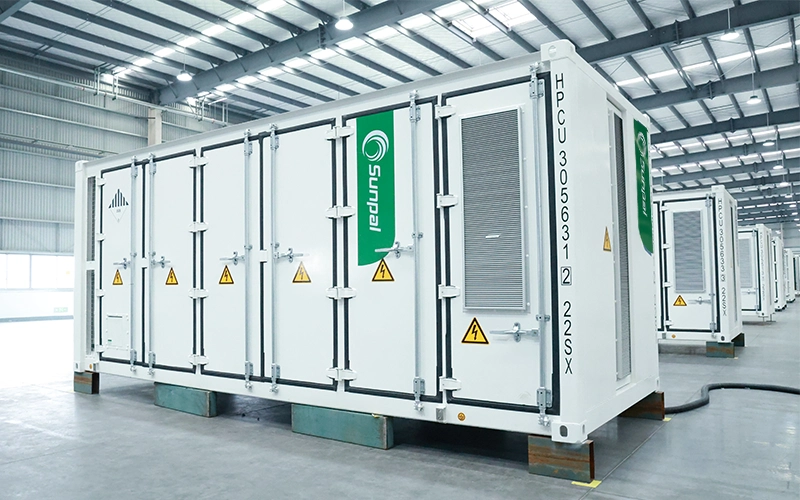

2170.3 kWh 20ft Liquid-Cooled ESS Container
Battery Capacity
Rated Output Power
Cycles Design Life
A 2170.3 kWh / 1125 kW 20ft liquid-cooled ESS container for C&I and utility-scale energy storage, integrating LFP batteries, PCS, EMS, hybrid cooling, and fire protection for solar-plus-storage, peak shaving, microgrid, and backup power projects.
UN38.3
IEC63056
IEC62933
UL9540A
CE/EMC
EN50549
A 2170.3 kWh / 1125 kW 20-ft liquid-cooled ESS container for utility-scale and large C&I energy storage, built for solar-plus-storage, peak shaving, grid support, microgrid, and backup power projects.
Battery Capacity
Rated Output Power
Cycles Design Life
System Efficiency
Outdoor Protection

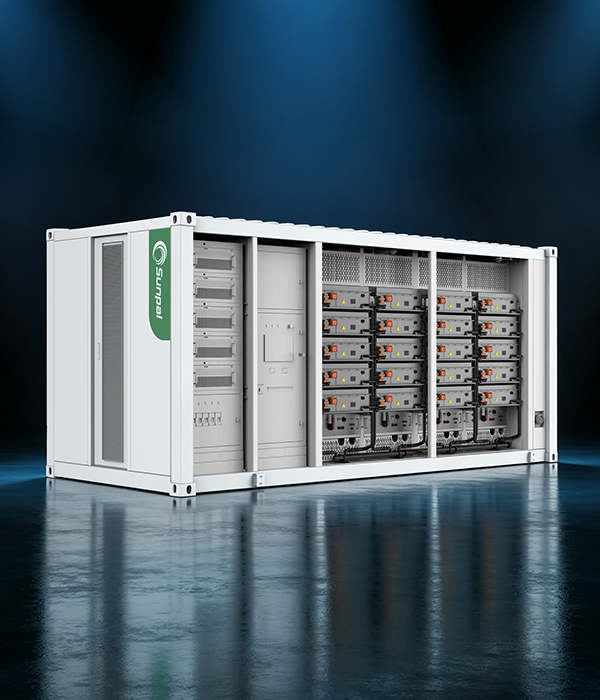

A 20ft liquid-cooled ESS container integrating dual PCS cabinets, 45 LFP battery PACKs, 9 high-voltage boxes, EMS, cooling, and fire protection for utility-scale storage, C&I peak shaving, solar-plus-storage, and microgrid projects.
PCS cabinet |
2/1# PCS cabinet installs 5 PCS modules 2# PCS cabinet installs 4 PCS modules |

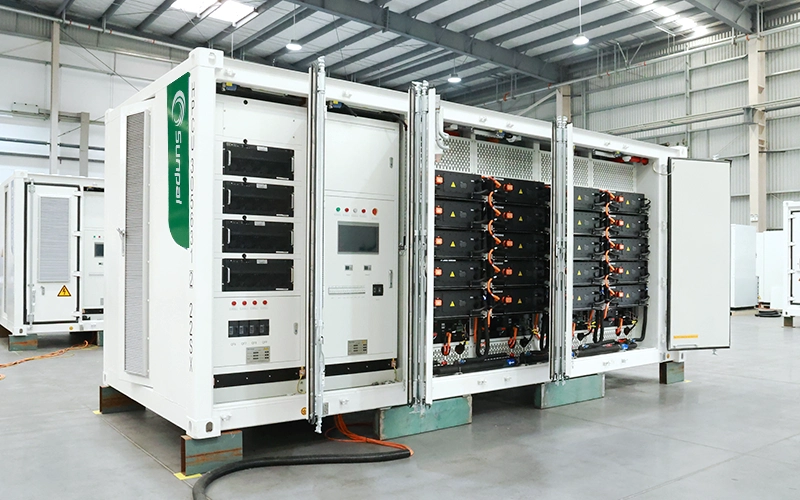

Grid-connected cabinet |
1/Includes EMS system and dynamic environment system |
High-voltage box |
9 |
Fire protection system |
1 |
PACK |
45/Single PACK series-parallel mode is 1P48S |
Liquid-cooling unit |
1/40kW (W18/L35) |
Container body |
1/L6058×W2438× H2591 mm |

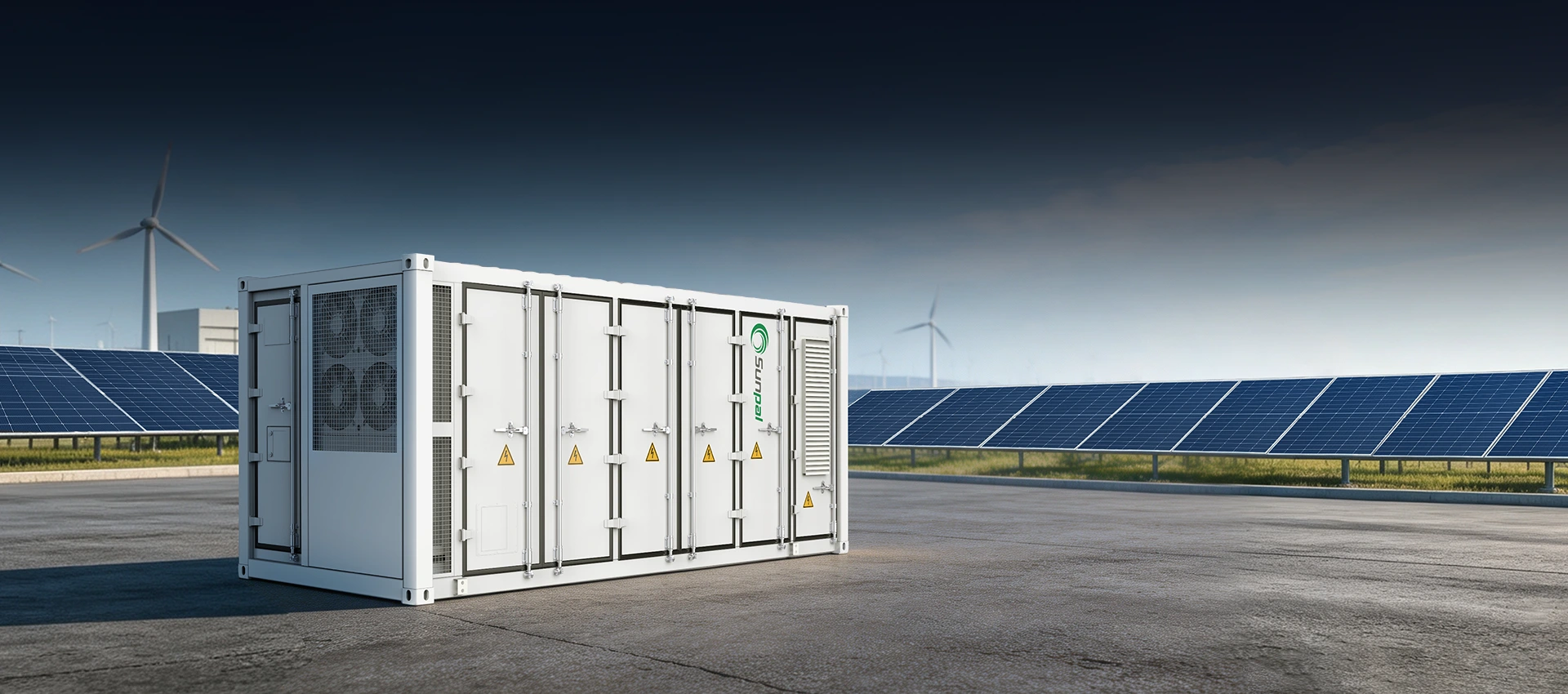

The CubePal ECO-E20FT2170LP-2 is a 2170.3 kWh / 1125 kW 20ft liquid-cooled ESS container designed for utility-scale storage and large C&I energy projects. With factory-integrated PCS cabinets, 45 LFP battery PACKs, string-level management, hybrid cooling, and multi-level fire protection, it helps EPCs, distributors, and project owners build scalable solutions for solar-plus-storage, peak shaving, microgrid, and backup power applications.
The 20ft container delivers 2170.3 kWh battery capacity and 1125 kW rated output, supporting high-power utility-scale and industrial energy storage projects while reducing system integration complexity.

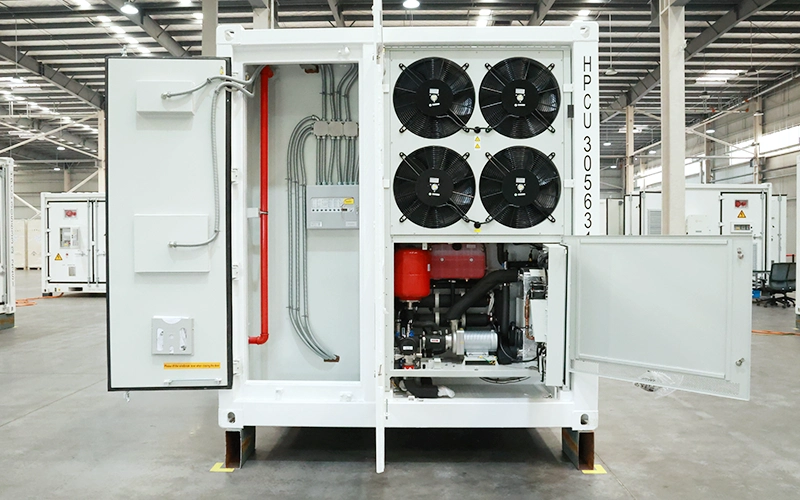

Liquid-cooled battery packs work with forced-air cooling for PCS and auxiliary equipment, helping maintain stable thermal performance, lower battery stress, and reliable operation in demanding outdoor environments.

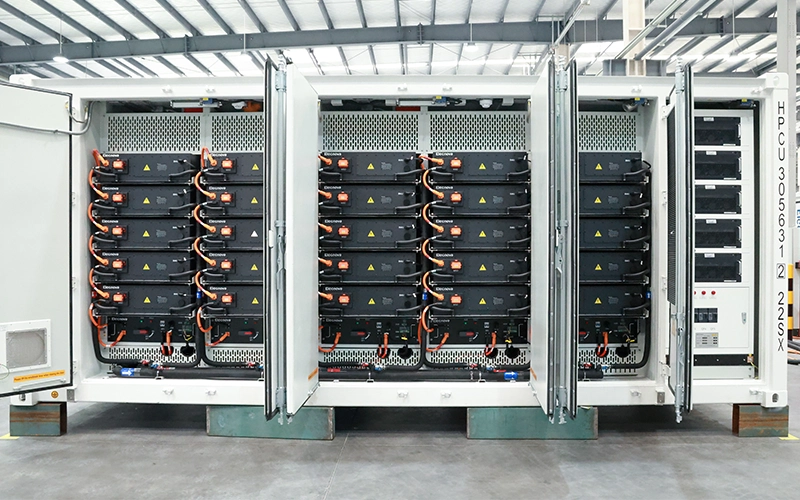

Independent battery cluster monitoring improves fault isolation, energy consistency, and maintenance visibility across 45 LFP battery PACKs, making the system easier to manage for large BESS projects.
The pre-installed container integrates PCS, EMS, battery system, cooling, and fire protection before delivery, helping EPCs shorten commissioning time, reduce site work, and better control total project cost.
Pack-level and container-level aerosol fire suppression, water spray support, thermal monitoring, and high-voltage protection work together to improve safety across the full ESS lifecycle.
Built for solar-plus-storage, peak shaving, load shifting, microgrid, and backup power, the system supports flexible deployment for energy developers, distributors, and large commercial power users.
[ TECHNICAL SPECIFICATIONS ]
Full Specifications for the CubePal ECO-E20FT2170LP-2
| Model | ECO-E20FT2170LP-2 |
| DC Side | |
| Cell Type | LFP314Ah |
| PACK | 48.23kWh/1P48S |
| Battery System | 2170.3kWh/9P240S |
| Voltage Range | 768Vdc |
| PACK Ingress Rating | 672~864Vdc |
| AC Side | |
| Rated Power | 1125kW(125kW*9) |
| Max. Power | 1237kW |
| THDi | ≤3% |
| DC Ratio | <0.5% Ipn |
| Nominal Voltage | 400Vac/3P+N+PE |
| Power Factor | -1lagging ~ 1leading |
| Nominal Frequency | 50Hz/60Hz |
| General | |
| System Efficiency | ≥88% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% (25±2℃) |
| Cycle Life | 8000cycles@±25℃,95%DOD 0.5P |
| Communication | Ethernet / RS485 |
| Ingress Rating | IP55 |
| Cooling System | Liquid Cooled + Forced Air Cooled |
| Operating Temperature | -25℃~55℃* |
| Humidity | 5~95%RH, non-condensing |
| Noise | ≤80dB |
| Altitude | ≤2,000m (derating above 2,000m) |
| Fire Suppression System | Aerosol system (pack level and container level), water spray system |
| Dimensions (W×D×H) | 6,058×2,438×2,591 mm |
| Weight | 25t |
| Compliance | UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056, UL9540A, IEC62933, EN50549 |
The CubePal ECO-E20FT2170LP-2 supports high-capacity energy storage projects with 2170.3 kWh battery capacity, 1125 kW rated output, liquid-cooled battery performance, and factory-integrated 20-ft container design. It helps EPCs, distributors, and project developers deploy scalable solutions for renewable energy integration, peak shaving, grid support, microgrid operation, load shifting, and industrial backup power.

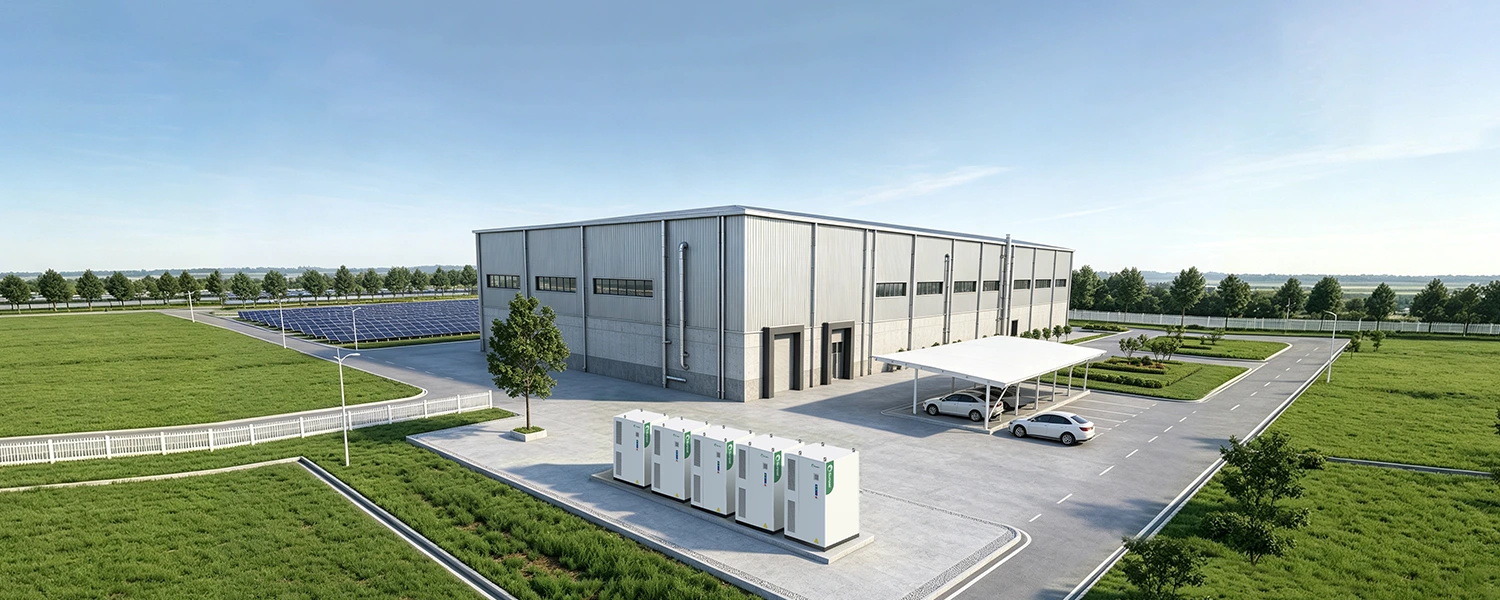

Utility-scale Energy Storage

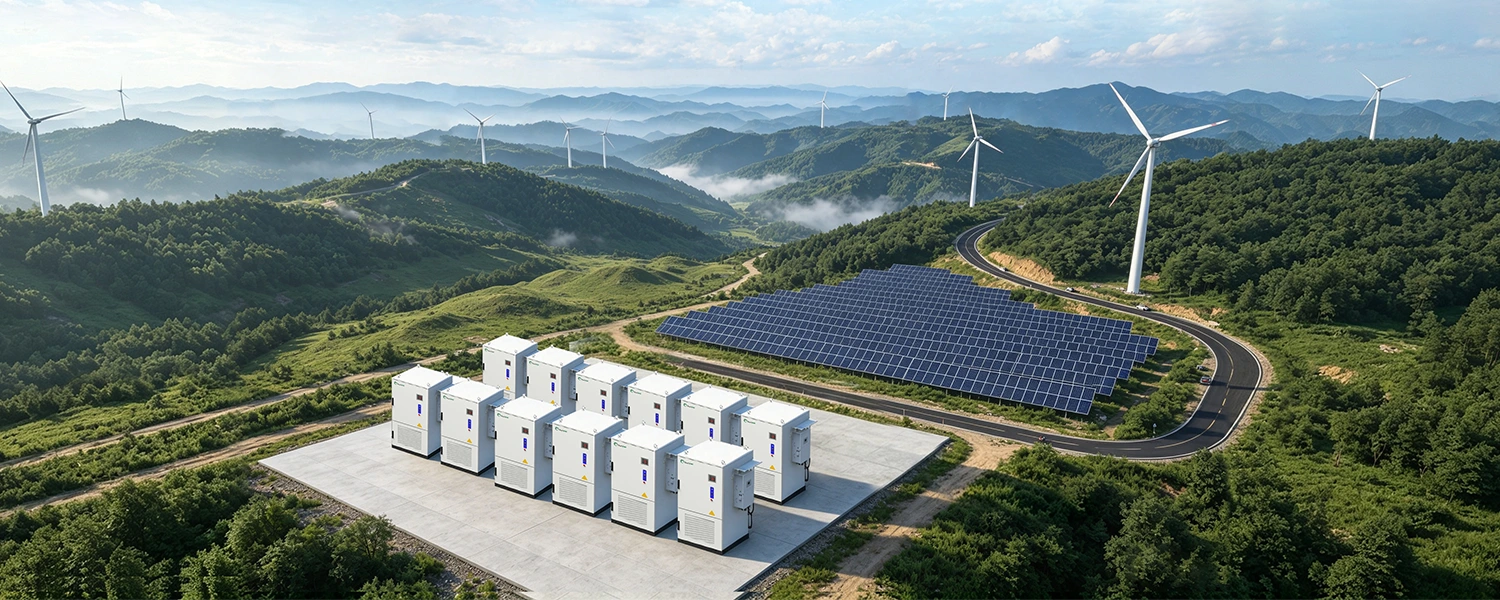

Grid Support & Power Dispatch

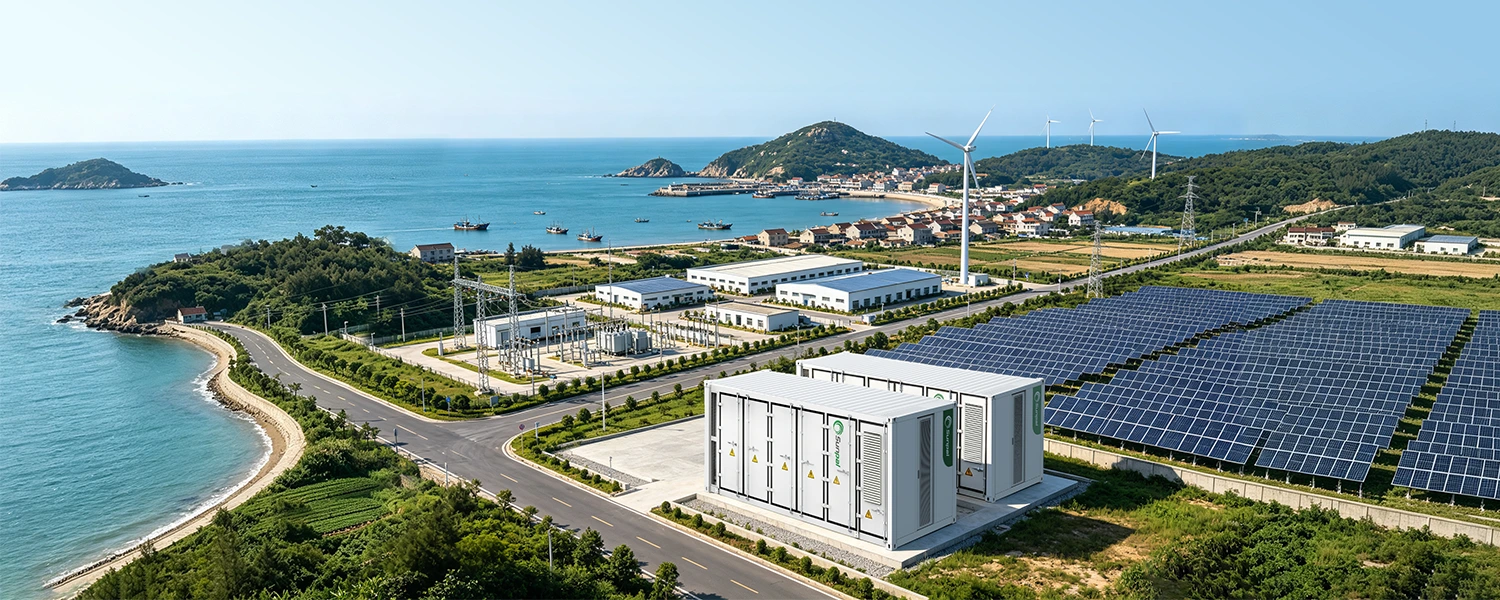

Microgrid & Backup Power
Everything You Need to Know About CubePal ECO-E20FT2170LP-2
The CubePal ECO-E20FT2170LP-2 is a 2170.3 kWh 20ft liquid-cooled ESS container designed for utility-scale and large C&I energy storage projects. It supports renewable energy integration, peak shaving, load shifting, microgrid operation, grid support, and industrial backup power.
Project sizing depends on load profile, peak demand, backup duration, grid connection, PV or wind generation, and operating strategy. SUNPAL ESScan help EPCs, distributors, and project owners evaluate capacity, power rating, system cost, and configuration options.
A containerized ESS integrates battery PACKs, PCS, EMS, cooling, electrical protection, and fire suppression into one factory-built platform. This helps reduce on-site integration work, shorten commissioning time, improve scalability, and simplify project deployment.
Liquid cooling helps maintain stable battery temperature during high-capacity charge and discharge, while forced air cooling supports PCS and auxiliary equipment. This hybrid thermal design improves system reliability, battery consistency, and long-term performance in outdoor ESS applications.
Yes. The CubePal ECO-E20FT2170LP-2 can be applied in solar-plus-storage, wind energy storage, grid-connected projects, microgrids, and backup power systems. It helps improve renewable energy utilization, power dispatch flexibility, and energy cost control.
The system uses LFP battery technology, intelligent monitoring, liquid cooling, high-voltage protection, pack-level and container-level aerosol fire suppression, and water spray protection to reduce operational risk throughout the ESS lifecycle.
Yes. The 20ft ESS container is designed for outdoor deployment with IP55 protection, liquid-cooled thermal management, and an operating temperature range of -25°C to 55°C, making it suitable for demanding commercial, industrial, and utility project sites.
Share your project location, grid voltage, load requirements, renewable energy input, backup time, and expected delivery schedule. SUNPAL ESScan provide a custom quote, datasheet, lead time, and technical proposal for ESS distributors, EPC companies, and project developers.
Share your project requirements and receive tailored pricing, lead time, datasheet support, and a technical proposal for your 2170.3 kWh 20ft liquid-cooled ESS container within 24 hours.
Our engineering team responds within 3 working days with acustomized technical proposal including system design, BOM, and ROI analysis.
+
