LIQUID-COOLED ESS CONTAINER
CUBEPAL SERIES

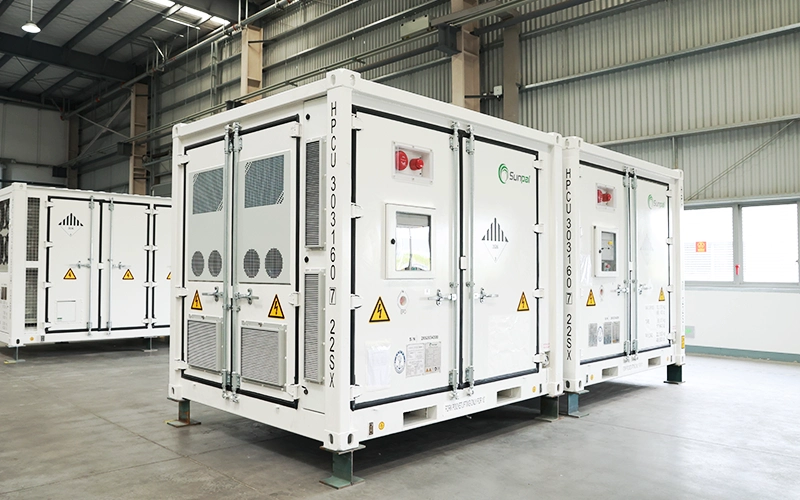

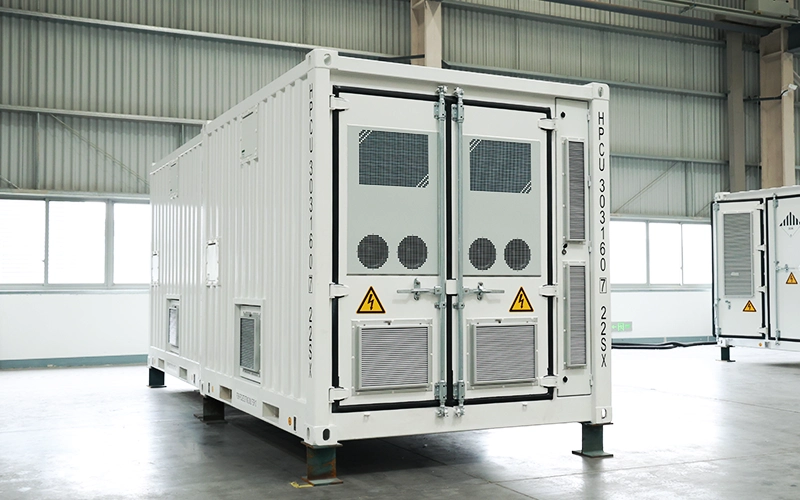

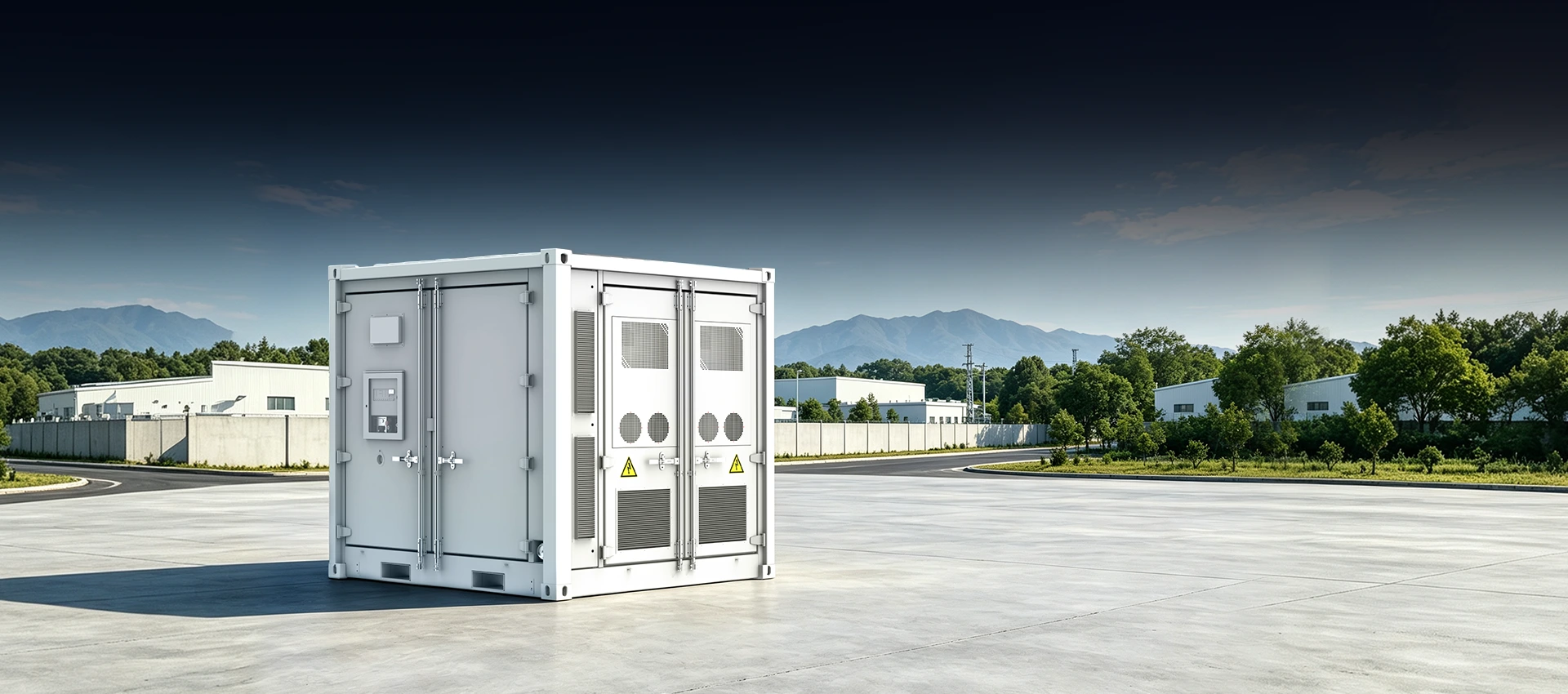

1044 kWh 10ft Liquid-Cooled ESS Container
Battery Capacity
Output Power
On/Off-Grid Switching
A 1044 kWh 10ft liquid-cooled ESS container integrating LFP batteries, PCS, STS, EMS, cooling, and fire protection for C&I energy storage, solar-plus-storage, microgrid, peak shaving, and backup power projects.
UN38.3
IEC62619
IEC63056
UL9540A
CE/EMC
EN50549
A 1044 kWh / 500 kW 10-ft liquid-cooled ESS container designed for C&I energy storage, solar-plus-storage, peak shaving, microgrid, and backup power applications.
System Capacity
Output Power
STS Transfer Time
Cycle Life
DoD Usable Capacity

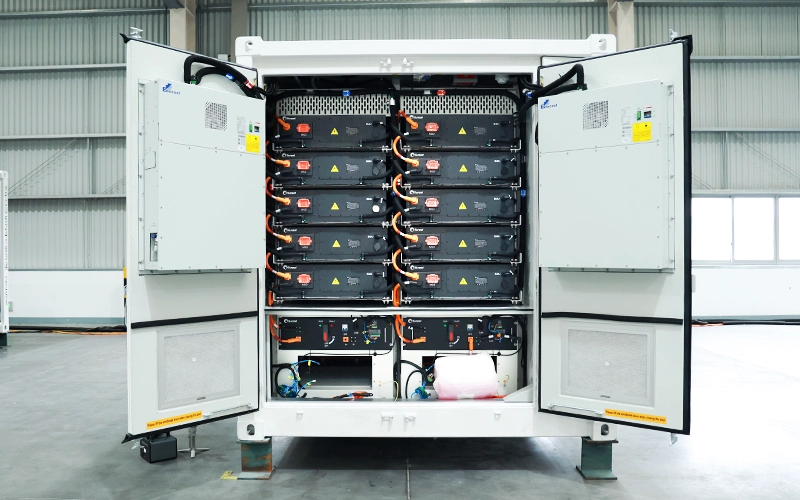

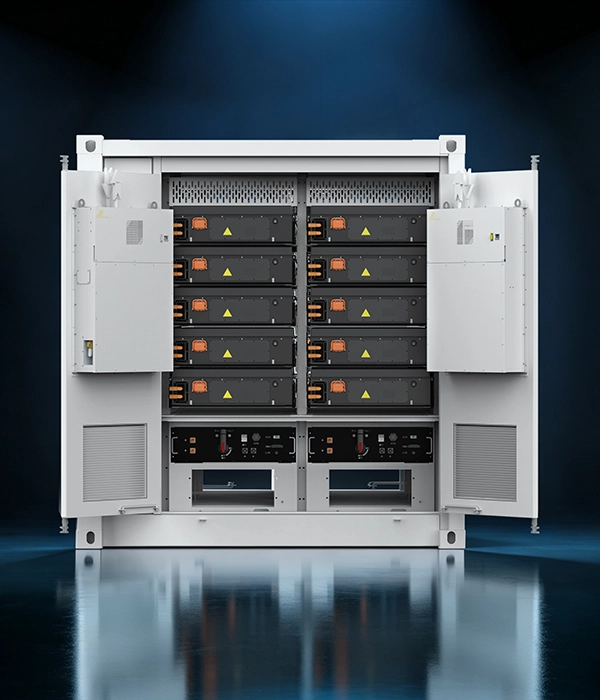

The ECO-E10FT1044LP-2 integrates 20 LFP battery PACKs, 4 PCS modules, STS, EMS, liquid cooling, high-voltage protection, and fire suppression inside a 10-ft containerized ESS platform, supporting C&I energy storage, solar-plus-storage, microgrid, and backup power projects.
PCS module |
4 |
Grid-connected cabinet |

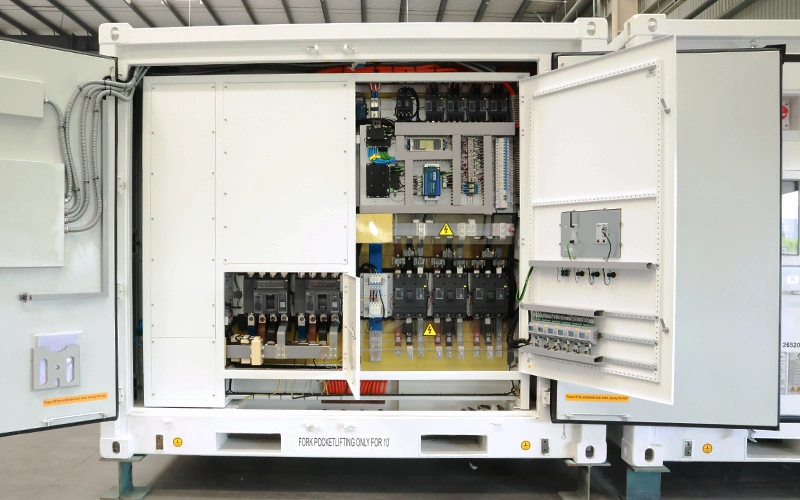

1/Includes STS module, EMS system and dynamic environment system |
High-voltage box |
4 |
Fire protection system |
1 |
PACK |
20/Single PACK series-parallel mode is 1P52S |
Liquid-cooling unit |
4/5kW (W18/L35) |
Container body |
1/L2991×W2438×H2591 mm |
A 1044 kWh / 500 kW 10-ft liquid-cooled ESS container built for EPCs, distributors, and C&I energy storage buyers, supporting peak shaving, backup power, solar-plus-storage, and microgrid deployment.
Integrates 20 LFP battery PACKs, 4 PCS modules, grid connection, cooling, and fire protection inside one 10-ft container, delivering 1044 kWh capacity with a smaller site footprint and easier project deployment.
The built-in STS enables on/off-grid transfer within 20 ms, helping maintain stable power for critical loads during grid faults, outages, or weak-grid operation.
Independent battery string monitoring improves fault isolation, operating reliability, and maintenance visibility, making the system easier to manage in large C&I energy storage projects.
Reserved interfaces for PV inverters and diesel generators support solar-plus-storage, PV-BESS-diesel hybrid microgrids, backup power, and multi-source energy management.
Liquid cooling with forced air cooling helps control battery temperature during high-power charge and discharge, supporting long cycle life, stable output, and lower thermal stress.
Pre-integrated container design reduces on-site installation work, commissioning complexity, and project delivery risk, helping buyers shorten lead time and control total ESS system cost.
[ TECHNICAL SPECIFICATIONS ]
Full Specifications for the CubePal ECO-E10FT1044LP-2
| Model | ECO-E10FT1044LP-2 |
| Baery Side | |
| Cell Type | LFP / 314 Ah |
| Pack Configuration | 52.2 kWh / 1P52S |
| System Configuration | 1044 kWh / 4P260S |
| Rated DC Voltage | 832 V |
| DC Voltage Range | 728 ~ 936 V |
| Max. Charge/Discharge Rate | 0.5 P |
| Max. Depth of Discharge | 100% (25 ± 2 ℃) |
| Grid Side | |
| Rated Output Power | 500 kW |
| Max. Apparant Power | 550 kVA |
| Rated AC Voltage | 400 V |
| AC Voltage Range | ±15% |
| Grid Type | 3W+N+PE |
| Rated Frequency | 50 Hz / 60 Hz |
| On/o-grid Switching Time | <20 ms |
| Power Factor | 0.99 / -1 ~ +1 |
| THDi | ≤3% |
| DC Ratio | <0.5% Ipn |
| BackupSide | |
| Max. PV Inverter Input Current | 800 A |
| Max. Diesel Generator Input Current | 800 A |
| Max. Backup Load Port Current | 800 A |
| Recommended Max. Backup Load Power* | 350 kW (70% of Rated Output Power) |
| General | |
| Cycle Life | ≥ 8,000 cycles |
| Communication | Modbus TCP/IP |
| Fire Suppression System | Aerosol system(pack level and container level), water spray system |
| Ingress Rating | IP54 |
| Cooling | Liquid cooling+Forced air cooling |
| Operating Temperature | -25℃~55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 5~95% RH (non-condensing) |
| Noise | ≤ 80 dB |
| Altitude | 3000m (Derating above 2000m) |
| Dimensions (W×D×H) | 2,991×2,438×2,591 mm |
| Weight | 14 t |
| Certification | UN38.3, IEC62477-1, CE/EMC, IEC62619, IEC63056, UL9540A, EN50549 |
A 1044 kWh / 500 kW 10ft liquid-cooled ESS container for C&I energy storage, solar-plus-storage, microgrid, peak shaving, load shifting, and backup power projects.
Commercial & Industrial Energy Storage
Peak Shaving & Load Shifting
Renewable Energy Integration Projects
Everything You Need to Know About CubePal ECO-E10FT1044LP-2
The CubePal ECO-E10FT1044LP-2 is a 1044 kWh 10-ft liquid-cooled ESS container designed for commercial, industrial, and utility-scale energy storage projects. It integrates LFP battery packs, PCS modules, STS, EMS, liquid cooling, and fire protection into one factory-built containerized battery energy storage system.
It is suitable for factories, industrial parks, commercial buildings, solar-plus-storage plants, microgrid projects, renewable energy integration, and industrial backup power systems that require reliable C&I energy storage and flexible power management.
The system stores electricity during low-cost periods or when solar generation is available, then discharges during peak-demand hours. This supports peak shaving, load shifting, demand charge reduction, and better energy cost control for commercial and industrial users.
Liquid cooling provides more stable battery temperature control during frequent charging and discharging. Combined with forced air cooling, it helps reduce thermal stress, improve battery consistency, and support long-term operation in high-cycle energy storage applications.
Yes. The system supports integration with PV inverters and diesel generators, making it suitable for solar PV + energy storage systems, PV-BESS-diesel hybrid microgrids, off-grid backup power, and renewable energy utilization projects.
Yes. With integrated STS functionality and on/off-grid switching within 20 ms, the ECO-E10FT1044LP-2 can help maintain power supply for critical loads during grid interruptions, weak-grid conditions, or emergency backup scenarios.
The system uses LFP battery technology, intelligent BMS monitoring, high-voltage protection, liquid cooling, pack-level and container-level aerosol fire suppression, and a water spray system to improve operational safety throughout the energy storage lifecycle.
Please share your project location, load profile, grid requirements, PV capacity, backup duration, and target deployment schedule. SUNPAL can provide a custom quote, technical datasheet, lead time, and configuration support for EPCs, distributors, and energy storage project buyers.
Share your project requirements and receive tailored pricing, lead time, datasheet support, and a technical proposal for your 1044 kWh 10-ft liquid-cooled ESS container within 24 hours.
Our engineering team responds within 3 working days with acustomized technical proposal including system design, BOM, and ROI analysis.
+
