LIQUID-COOLED BATTERY CONTAINER
CUBEPAL SERIES
5.015 MWh All-in-One Liquid-Cooled Battery Container
Storage Capacity
DoD Usable Energy
Cycles Battery Life
CubePal ECO-B20FT5015LP-2N is a 5.015 MWh all-in-one liquid-cooled battery energy storage container designed for utility-scale BESS, large C&I energy storage, renewable integration, and grid-support projects. Built with LFP battery packs, intelligent BMS, liquid cooling, and multi-level fire protection, this factory-integrated containerized ESS helps EPCs, distributors, and project developers reduce installation cost, shorten delivery time, and achieve reliable long-duration energy management.
UN3536
IEC62619
IEC63056
IEC62477-1
IEC61000-6-2/4
Designed for utility-scale BESS and large C&I energy storage projects, CubePal ECO-B20FT5015LP-2N delivers 5.015 MWh storage capacity, 100% DoD usable energy, precise liquid cooling, and stable operation at high-altitude sites. Its performance data helps EPCs, distributors, and project developers compare system cost, technical fit, and long-term energy storage value before procurement.
Storage Capacity
Cycles Battery Life
DoD Usable Energy
Cell Temperature Difference
Max. Operating Altitude

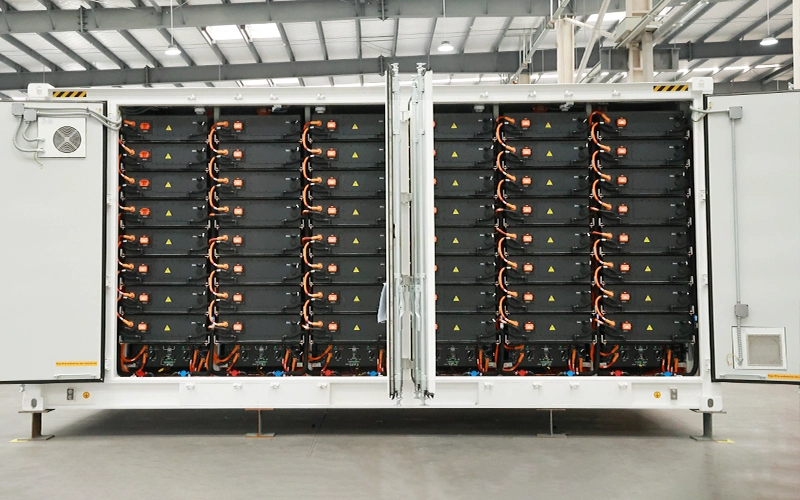

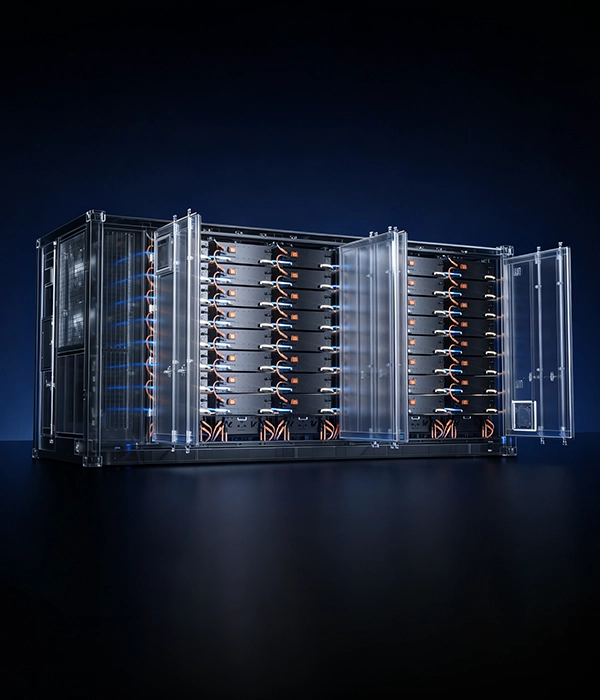

CubePal ECO-B20FT5015LP-2N is a factory-integrated 20ft liquid-cooled BESS container built with 48 battery PACKs, 6 high-voltage boxes, a liquid-cooling unit, fire protection system, and a combined distribution cabinet with EMS, ESCCU, and dynamic environment monitoring. This 5.015 MWh containerized battery energy storage system helps EPCs, distributors, and project owners simplify installation, reduce integration cost, and support reliable utility-scale energy storage deployment.
PACK |
48/Single PACK series-parallel mode is 1P104S |
High-voltage box |
6 |
Fire protection system |
1 |
Liquid-cooling unit |
1 |
Combiner distribution cabinet |
1/Includes EMS, ESCCU and dynamic environment system |
Container body |
1/L6058×W2438×H2896 mm |
CubePal ECO-B20FT5015LP-2N is engineered for 5MWh-class utility-scale BESS and large C&I energy storage projects, combining high-capacity LFP battery storage, precision liquid cooling, intelligent BMS control, and multi-level safety protection in one factory-integrated 20ft container. It helps EPCs, distributors, and project owners reduce deployment cost while improving usable energy, thermal consistency, and long-term operation reliability.
With 5.015 MWh storage capacity in a standard 20ft container, the system delivers high energy density, better footprint utilization, and lower balance-of-system cost for large energy storage projects.
The intelligent liquid cooling system adjusts cooling output according to battery temperature, helping reduce self-consumption and improve overall system efficiency during long-term operation.
Reduced fan dependency and optimized thermal control help lower operating noise compared with traditional air-cooled BESS, making the container more suitable for industrial and grid-side sites.
Stable LFP battery temperature management helps slow degradation, support 8,000+ cycle life, and improve lifecycle value for project developers and wholesale energy storage buyers.
Liquid cooling keeps cell temperature difference within ≤3°C, improving battery consistency, voltage stability, and reliable charge-discharge performance under demanding conditions.
With IP55 container protection, IP65 battery PACK design, C4 corrosion resistance, and optional C5 upgrade, the system supports reliable outdoor deployment in complex project environments.
[ TECHNICAL SPECIFICATIONS ]
Full Specifications for the CubePal ECO-B20FT5015LP-2N
| Model | ECO-B20FT5015LP-2N |
| Item | |
| Cell Type | LFP314 Ah |
| Pack Configuration | 104.5kWh / 1P104S |
| System Configuration | 5.015MWh / 12P416S |
| Rated DC Voltage | 1331.2 V |
| DC Voltage Range | 1165 ~ 1498 V |
| Max. Charge/Discharge Rate | 0.5 P |
| Max. Depth of Discharge | 100% (25 ± 2°C) |
| Cycle Life | ≥ 8,000 cycles |
| Fire Suppression System | Aerosol system+Water spray system |
| Ingress Rating | IP55 |
| Cooling | Liquid cooling+Forced air cooling |
| Operating Temperature | -25°C~55°C (Derating after 45°C) |
| Anticorrosion Rating | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) |
| Altitude | 4500m |
| Dimensions (W×D×H) | 6,058×2,438×2,896 mm |
| Weight | 41.8t |
| Safety/EMC | UN3536, IEC62619, IEC63056, IEC62477-1, IEC61000-6-2/4 |
CubePal ECO-B20FT5015LP-2N supports large-scale energy storage projects with 5.015 MWh capacity, liquid-cooled battery management, high energy density, and intelligent system control. Designed for utility-scale BESS, grid-side storage, renewable energy integration, and large C&I applications, it helps EPCs, distributors, and project developers improve energy scheduling, reduce project cost, and build reliable long-duration power management systems.

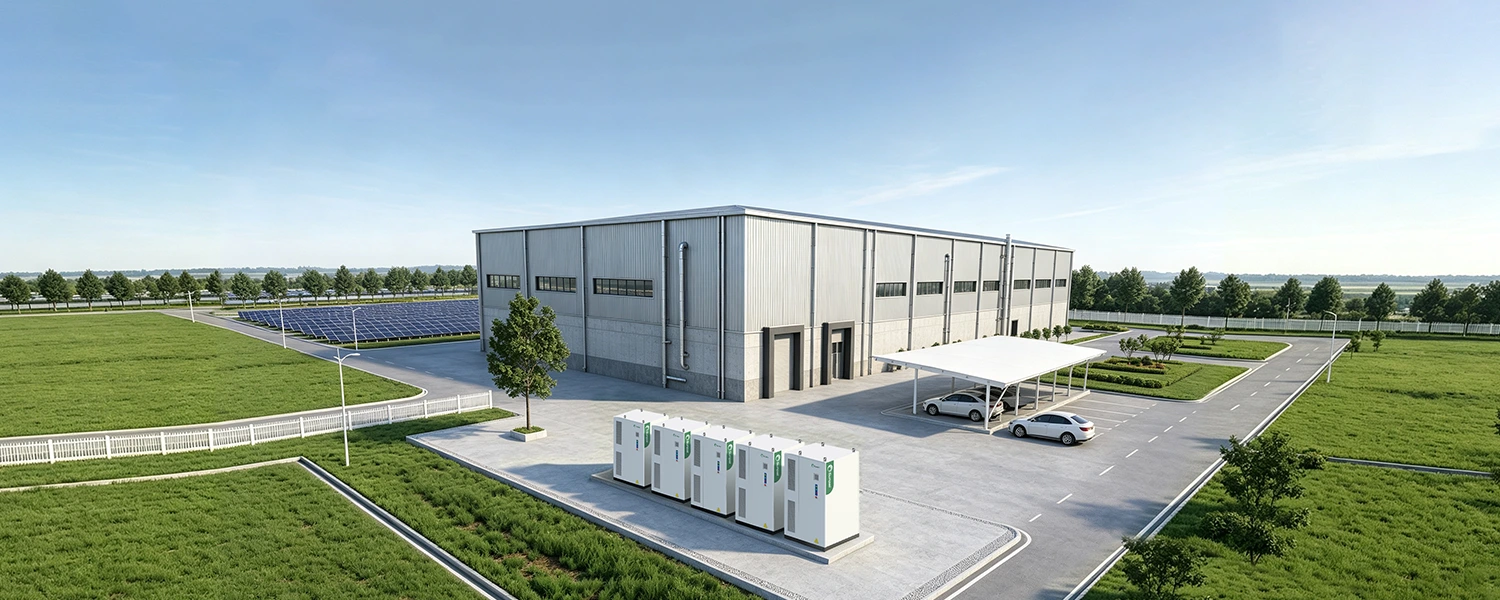

Utility-scale BESS Projects
Grid-side Energy Storage

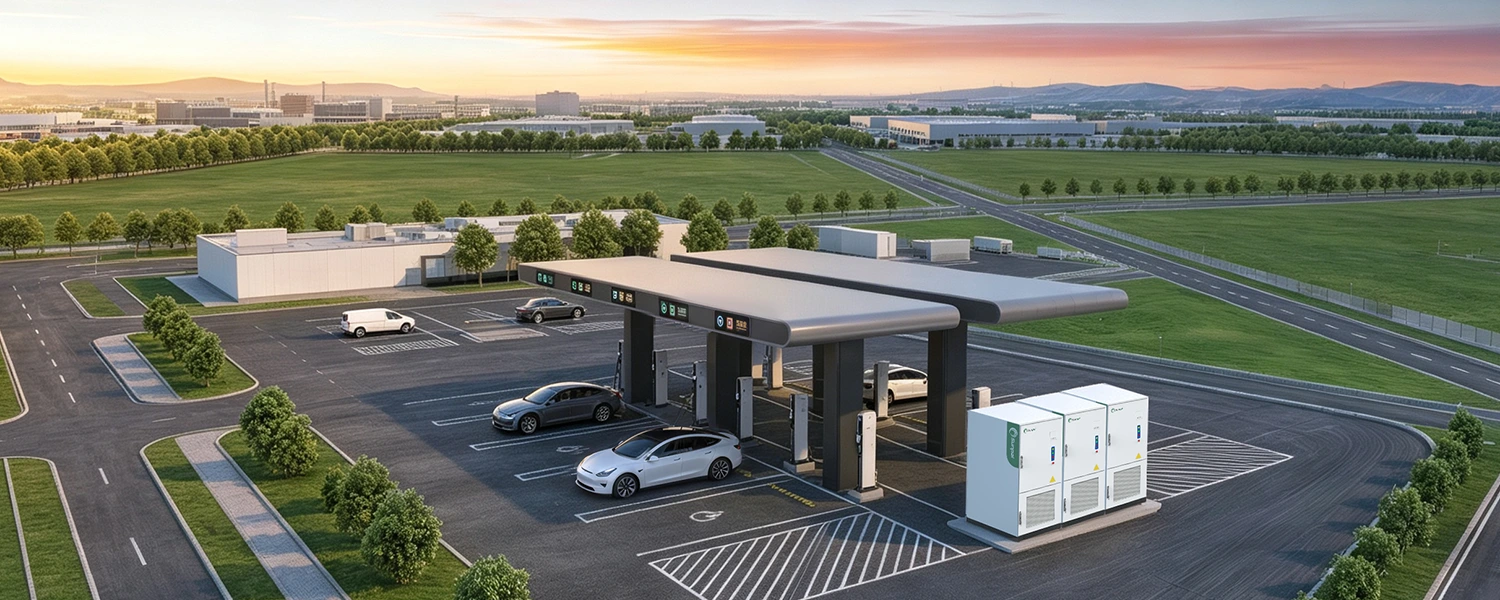

Peak Shaving & Load Shifting
Everything You Need to Know About CubePal ECO-B20FT5015LP-2N
CubePal ECO-B20FT5015LP-2N is designed for 5MWh-class utility-scale BESS projects, grid-side energy storage, renewable energy integration, large C&I energy storage, microgrids, and industrial backup power applications.
A 5.015 MWh liquid-cooled battery container provides high energy density in a standard 20ft footprint, helping project owners reduce site space, simplify deployment, and improve overall storage capacity planning.
Liquid cooling helps control battery temperature more precisely and keeps cell temperature differences within ≤3°C, reducing thermal stress and supporting stable long-term operation for large-scale energy storage systems.
Yes. The system supports 100% DoD under specified operating conditions, helping EPCs and project developers improve usable energy, lifecycle value, and project cost evaluation.
Yes. With IP55 protection, C4 anticorrosion rating, and support for operation up to 4500 m altitude, it is suitable for demanding outdoor utility, renewable energy, and industrial storage sites.
The container combines LFP battery chemistry, intelligent BMS monitoring, liquid cooling, electrical protection, aerosol fire suppression, and water spray protection to reduce operational risk.
Yes. The containerized BESS design supports scalable project configuration, allowing multiple units to be used for larger grid-side storage, renewable energy, and utility-scale power management projects.
Share your project capacity, grid requirements, site conditions, and application scenario. Sunpal can provide a custom quote, datasheet, lead time, and technical proposal for EPCs, distributors, and project owners.
Share your project requirements and receive tailored pricing, lead time, datasheet support, and a technical proposal for the 5.015 MWh liquid-cooled BESS container within 24 hours.
Our engineering team responds within 3 working days with acustomized technical proposal including system design, BOM, and ROI analysis.
+
