AIR-COOLED HYBRID CABINET
AIRPAL HYBRID SERIES

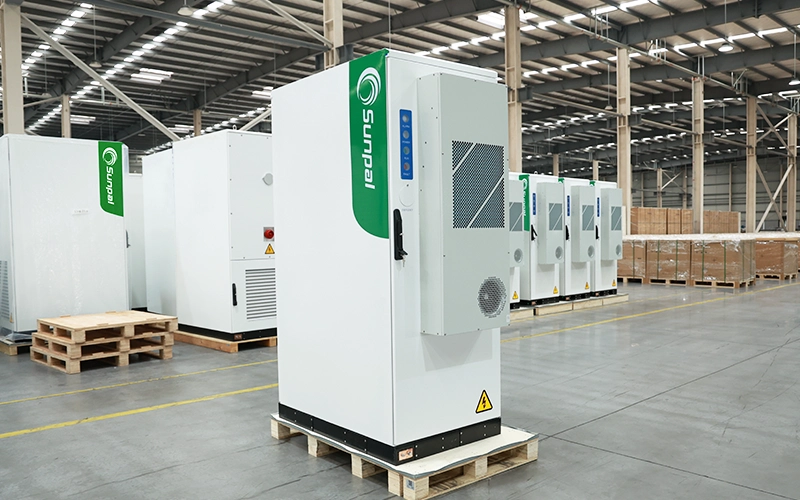

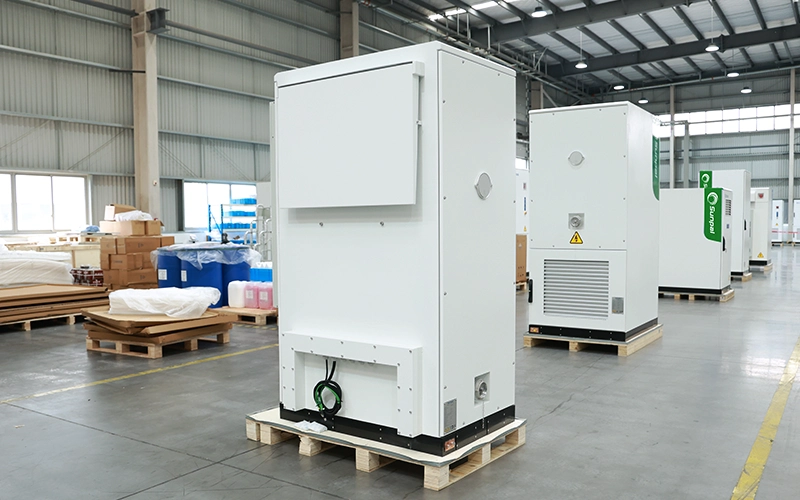

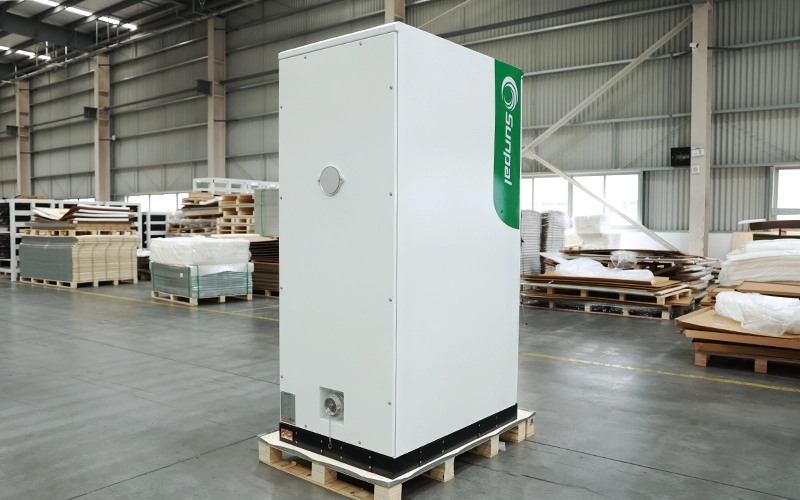

AirPal Hybrid ECO-B100/120WP-2H
100/120 kWh All-in-one Air-cooled Hybrid Cabinet for Growing C&I Loads
-
100/120 kWh
System Capacity
-
50 kW
Rated Output
-
8,000+
Cycle Life
The AirPal Hybrid ECO-B100/120WP-2H combines LFP battery storage, a hybrid inverter, HVAC, fire suppression, and intelligent energy management in one cabinet — simplifying installation while giving facilities two capacity options (100.48kWh or 120.576kWh) to match self-consumption, peak shaving, and backup power needs without over- or under-sizing.
CERTIFICATIONS
UN38.3
IEC 62619
IEC 63056
IEC 62477-1
IEC 61000-6-2/4
[ PRODUCT PERFORMANCE ]
Core Performance Data Behind the ECO-B100/120WP-2H
Every performance figure here is validated by multiple international certifications and field-proven across diverse commercial and industrial energy storage applications.
-
100.48 / 120.576 kWh
Battery Capacity
-
50 kW
Max Output Power
-
8,000+
Cycle Life
-
90%
Round-Trip Efficiency
-
IP55
Outdoor Protection
[ SYSTEM CONFIGURATION ]

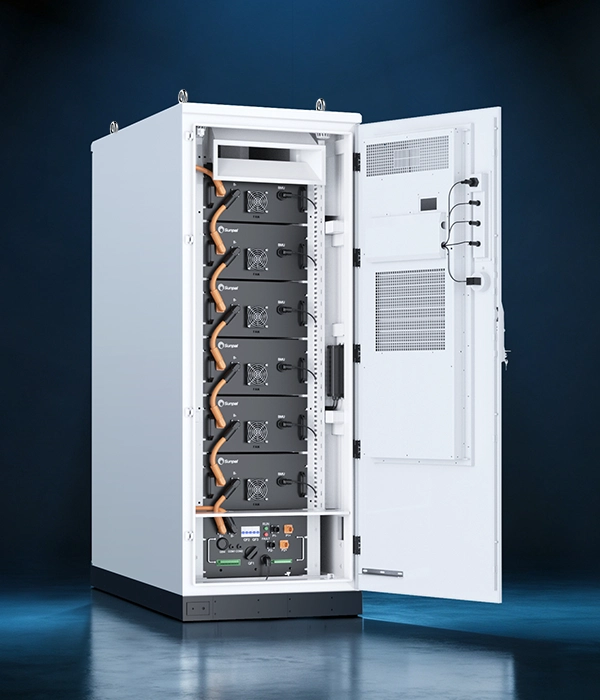

Core System Configuration Inside the ECO-B100/120WP-2H

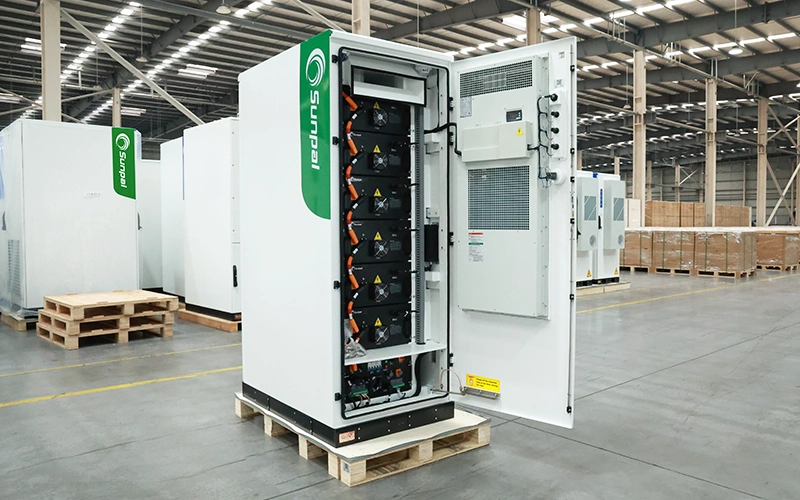

The cabinet integrates an LFP battery system, hybrid inverter, HVAC, fire suppression, intelligent EMS, and electrical protection into one compact platform for efficient energy storage, power conversion, and system management.
[ PRODUCT ADVANTAGES ]
Why Choose AirPal Hybrid ECO-B100/120WP-2H for Evolving Energy Demand?
From energy cost optimization to backup power support, the ECO-B100/120WP-2H combines efficiency, scalability, and intelligent operation to keep pace with commercial energy demands that change over time.
-
Compact & Convenient
A space-saving 0.96㎡ footprint with an integrated cabinet design makes transportation, installation, and site planning easier for tight commercial layouts.
-
Economical & Efficient
Up to 90% round-trip efficiency and 100% depth of discharge maximize usable energy and improve overall project returns.
-
Expandable & Modular
Modular architecture supports parallel connection and capacity expansion, so the system can adapt as energy demand grows.
-
Flexible Hybrid Integration
Support for multiple hybrid inverter brands and PV connection gives project integrators greater compatibility and configuration flexibility.
-
Safe & Reliable
IP55 protection, optimized airflow design, and intelligent temperature control maintain stable operation even in demanding environments.
-
Advanced LFP Battery System
High-performance LFP 314Ah cells rated for 8,000+ cycles deliver long-lasting, reliable energy storage.
-
Intelligent O&M Management
Onsite and cloud-based operation support remote monitoring, efficient maintenance, and better lifecycle visibility.
-
Integrated All-in-One Design
Battery, inverter, HVAC, EMS, and fire suppression combine into one cabinet, simplifying both installation and day-to-day operation.
[ TECHNICAL SPECIFICATIONS ]
Full Specifications for the AirPal Hybrid ECO-B100/120WP-2H
| Model | ECO-B100WP-2H | ECO-B120WP-2H |
| DC Side | ||
| Cell Type | LFP / 314 Ah | LFP / 314 Ah |
| Pack Configuration | 20.096 kWh / 1P20S | 20.096 kWh / 1P20S |
| System Configuration | 100.48 kWh / 1P100S | 120.576 kWh / 1P120S |
| Rated DC Voltage | 320 V | 384 V |
| DC Voltage Range | 280~360 V | 336~432 V |
| Max. Charge/Discharge Rate | 0.5 P | 0.5 P |
| Max. Depth of Discharge | 100% (25 ± 2 ℃) | 100% (25 ± 2 ℃) |
| Cycle Life | ≥ 8,000 cycles | ≥ 8,000 cycles |
| AC Side | ||
| Rated Output Power | 30 kW / 40 kW / 50 kW | 30 kW / 40 kW / 50 kW |
| Rated AC Voltage | 400 V | 400 V |
| AC Voltage Range | ±15% | ±15% |
| Grid Type | 3W+N+PE | 3W+N+PE |
| Rated Frequency | 50Hz/60Hz | 50Hz/60Hz |
| Power Factor | 0.99/-0.8 ~ +0.8 | 0.99/-0.8 ~ +0.8 |
| THDi | ≤3% | ≤3% |
| DC Ratio | ＜0.5%Ipn | ＜0.5%Ipn |
| General | ||
| Max. Round Trip Efficiency | 90% | 90% |
| Communication | Modbus TCP/IP | Modbus TCP/IP |
| Fire Suppression System | Aerosol | Aerosol |
| Ingress Rating | IP55 | IP55 |
| Cooling | Air cooling | Air cooling |
| Operating Temperature | -25℃ ~55℃ (Derating after 45℃) | -25℃ ~55℃ (Derating after 45℃) |
| Anticorrosion Rating | C4 (C5 optional) | C4 (C5 optional) |
| Humidity | 0~95% RH (non-condensing) | 0~95% RH (non-condensing) |
| Altitude | 3000m (Derating above 2000m) | 3000m (Derating above 2000m) |
| Dimensions (W×D×H) | 800×1,200×2,100 mm | 800×1,200×2,100 mm |
| Weight | 1,200 kg | 1,200 kg |
| Safety/EMC | UN38.3,IEC62619,IEC63056,IEC62477-1,IEC61000-6-2/4 | UN38.3,IEC62619,IEC63056,IEC62477-1,IEC61000-6-2/4 |
| Grid code | EN50549-1/-10,EN50549-2/-10,G99,VDE4105,NRS097,C10/1 | EN50549-1/-10,EN50549-2/-10,G99,VDE4105,NRS097,C10/1 |
| PV Input | ||
| Max.input power | 60 kW / 80 kW / 100 kW | 60 kW / 80 kW / 100 kW |
| PV Voltage Range | 150~850V | 150~850V |
| MPPT | 3/4/4 | 3/4/4 |
| MAX. Input Current | 40A*3 / 40A*4 / 40A*4 | 40A*3 / 40A*4 / 40A*4 |
[ PRODUCT SOLUTIONS ]
Flexible Energy Storage Solutions for Diverse Applications
The ECO-B100/120WP-2H adapts to a wide range of commercial scenarios — enabling PV self-consumption, energy shifting, backup power, and intelligent operation through flexible energy management modes suited to each site type.
Solar PV + Storage
Agricultural Applications
EV Charging Stations
[ KNOWLEDGE CENTER ]
Frequently Asked Questions
Everything You Need to Know About AirPal Hybrid ECO-B100/120WP-2H
-
What is the AirPal Hybrid ECO-B100WP-2H / ECO-B120WP-2H?
The AirPal Hybrid Series is an all-in-one air-cooled ESS cabinet integrating LFP batteries, a hybrid inverter, EMS, HVAC, and fire suppression, purpose-built for commercial PV-plus-storage applications.
-
What's the difference between ECO-B100WP-2H and ECO-B120WP-2H?
The main difference is battery capacity — ECO-B100WP-2H provides 100.48kWh of storage, while ECO-B120WP-2H offers 120.576kWh for longer backup runtime and higher energy demand.
-
Can this AirPal Hybrid ESS be connected to solar PV systems?
Yes. It supports direct PV connection with integrated hybrid operation, enabling solar self-consumption, renewable energy optimization, and reduced reliance on grid electricity.
-
How long is the battery lifespan of this energy storage cabinet?
With high-performance LFP 314Ah battery cells, the cabinet is rated for more than 8,000 charge/discharge cycles for long-term reliable operation.
-
Can multiple AirPal Hybrid ESS units be connected together?
Yes. The modular architecture supports parallel connection and flexible capacity expansion, allowing customers to scale up as energy requirements increase.
-
What safety features are included in the AirPal Hybrid ESS?
IP55 protection, optimized ventilation design, intelligent temperature control, and an aerosol fire suppression system work together to keep operation safe across environments.
-
Which operating modes does the AirPal Hybrid ESS support?
It supports PV self-consumption, peak shaving, energy shifting, and backup power operation — covering most common commercial energy management strategies.
-
How can users monitor and maintain the AirPal Hybrid ESS after installation?
The system supports both onsite and cloud-based operation and maintenance, enabling remote monitoring, intelligent management, and efficient lifecycle service without frequent site visits.
